The primary purpose of an awning is to extend fabric covers to block the sun or rain, either with the help of a motor or a hand crank. However, depending on the type, the awning mechanism also varies.
If you don’t understand how your awning works, you mightn’t be able to recognize if any issue occurs. Therefore, understanding the different components of your awning and their functionality will help you better comprehend how it works, while ensuring proper maintenance. So, let’s dive into knowing what your awning is made of!
Awning Mechanism Parts and Components
An awning is far more than a sheet of fabric tossed over a frame. It is a full system of interlocking pieces that rolls open and shut, braces against sudden gusts, and stands guard through rain, snow, and everything in between. Learn about each component that keeps your retreat so easy and reliable.
-
Fabric
The fabric primarily determines the shade you get from your awning. There are different types of awning fabrics; some suit humid heat, others claim turf in dry zones.
- A common blend pairs polyester with vinyl, which is light, durable, and easy to tension.
- Heavy acrylic appears, too. It sheds light rain but refuses the title waterproof. Acrylic also resists mildew, a plus in muggy areas.
- Some owners choose metal or wood, yet those materials demand extra TLC. For most folks, soft fabric is prettier and easier to maintain.
-
Fabric Attachments
These fittings secure the cloth to the frame. A channel called molding slides the edge into place. Once nestled, the fabric locks in with a tight grip. Extras such as laces, screws, and staples pitch in.
Together, they wipe out flapping and slipping. When gusts howl or storms roll, stout attachments hold firm.
Lose them, and the awning quickly tears or tumbles. This detail allows the bright canopy to continue working and looking good.
-
Substrate
Now let’s know about the substrate, it acts like an awning’s hidden backbone. It is the plain surface is where the frame sits and locks in place. That surface can be a wall, ceiling, beam, or anything solid enough to hold weight.
It might look boring, yet its job is mission-critical. Without a heavy overhang, a cracked slab, or a crooked stud, the whole unit shakes. So, before the brackets arrive, give the substrate a close look. If it wobbles, everything else will, too.
-

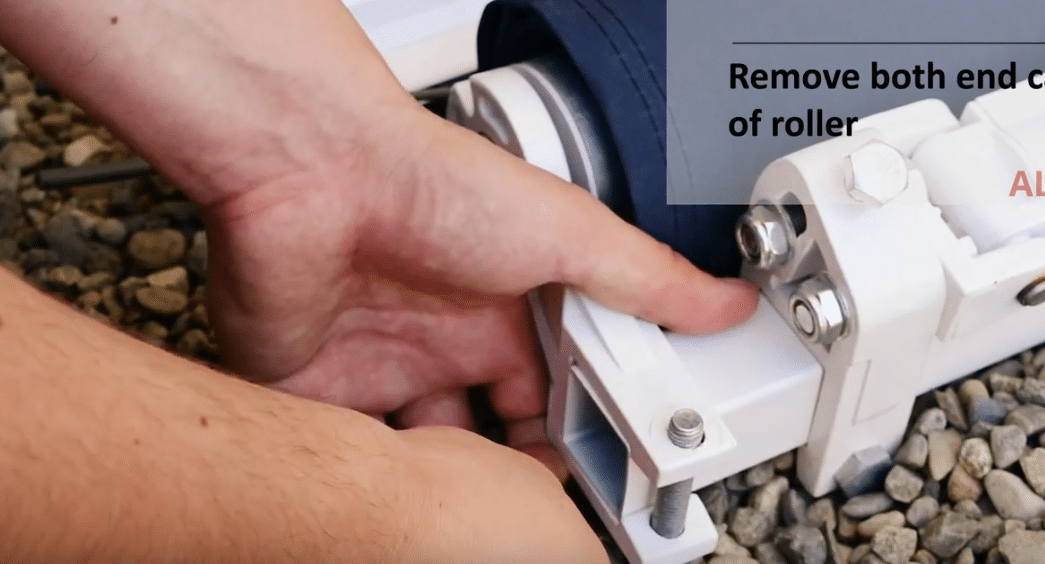

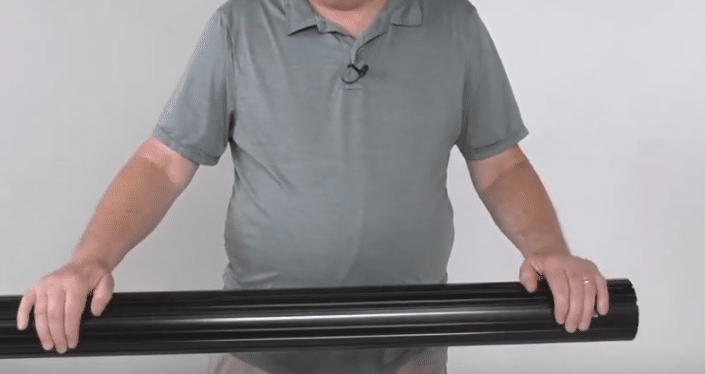

Roller Tube
Think of the roller tube as the brains behind your awning fabric. It is the pipe that winds the cloth in and out. Thanks to this cylinder, you can spread shade at noon and tuck the cover in before rain.
Premium models use aluminum alloy: light, strong, and resistant to rust. Put simply, a tough roller tube means smoother operation and fewer service calls.
-
Crank Handles
Crank handles are the little levers that open and close some awnings. You give the handle a quick twist, and the fabric either rolls out over the window or creeps back in.
They usually sit at the bottom of the frame so you can reach them without stretching. These handles are built to withstand the weight of the cloth and any rainwater that may sit on it.
With a crank in place, you can let a breeze through and still keep light showers away. You’ll spot the same design on plenty of awning windows around town.
-
Gears and Gearboxes
Hidden inside that cassette are the gears and gearboxes that move the fabric. Turn the crank or push the remote, and those tiny wheels begin to spin. They change your easy twist into a steady, gentle roll.
Without them, opening the awning would feel heavy, jerky, and maybe even break the handle. Quality gears cut the effort you have to put in to keep your wrists happy.
-
Arms and Brackets
The arms are the backbone of the awning. They reach from the main frame to the wall and keep the whole thing standing. The guide rails ensure the fabric rolls in the correct direction.
Articulated arms bend like elbows so you can tilt the shade as needed. Support arms provide extra stability, preventing the awning from rocking. Most units are built from aluminum or steel that won’t snap in a gust.
With these pieces, the awning stays straight, tight, and locked- no flapping, no sagging.
-
Support Arm Assembly
The support-arm assembly lifts the awning from both edges. Inside, you’ll find small bits like the gas strut, a sealed tube that eases opening and closing. The inner and outer arm are sturdy bars that stretch toward the wall.
The pitch arm adjusts the angle, while the wall mount fastens everything in place. Thus, this rig works with either manual cranks or a motor. It keeps the awning sliding in and out without wobbling.
-
Tension Springs
Tension springs are tight metal coils that give your awning a gentle nudge. You usually can’t see them because they sit inside the arms or the roller tube. When you open the awning, the spring pushes it out smoothly.
Then, when you close it, the spring pulls everything back in. Because it’s spring, the fabric doesn’t flop or snap. Picture a quiet little helper inside the arm, keeping every move steady and safe.
-
Drive Mechanism
The drive mechanism is the part that slides the awning in and out. On some models, you turn a hand crank to get the job done.
On others, a small motor does all the work. The motor sits inside the roller tube and responds to a remote or a wall switch.
A few hybrid models give you both options, letting you crank if the power goes out. Either way, the system is meant to be easy. Push a button or turn a knob, and you’ve got shade.
-
Sensors & Smart Automation
Some upscale awnings now hide smart tech inside. Wind, rain, and sunlight sensors sit built into the frame. Each one whispers weather clues into the fabric. If a strong gust rolls in, the system reels the awning back.
Bright afternoon sun triggers the shade to glide out and cool the deck. You can also command it with a pocket remote or phone app. Some setups follow a set clock, opening and closing at your chosen hour. These gadgets turn a simple cover into a chatty, hands-free helper.
-
Wind Sensor
The wind sensor is the watchdog for sudden gusts. Once it senses the breeze hitting the set’s limits, it orders the awning to retreat fast. That quick roll-in keeps frames, fabric, and brackets from bending or tearing in a surprise storm.
Despite its tiny footprint, the gadget reads wind speed with some serious smarts. Installing one can save you costly repairs and give you peace of mind.
-
Locking and Latching
These little gadgets hold your awning right where you want it. When the fabric rolls in, the latch stops any surprise unrolling. When the canvas is out, it stays tight and calm.
The hardware appears basic, yet it packs a significant amount of power. With locks like this, the awning ignores gusts and curious pets. That calm gives you one less worry on blustery afternoons.
-
Pulley System
Finally, many awnings still operate with ropes and pulleys, sliding up and down. You tug the line, the wheel spins, and the fabric glides free. Tug again, and it coils back up without drama. Its design is old, yet proven and rugged.
Because nothing runs on batteries, repairs rarely mean a trip to town. Of course, modern motors often conceal the exact mechanisms and additional gears inside.
Manual vs. Motorized Retractable Awning Mechanism
Hand-crank and motorized awnings may look identical, but inside, they call on separate workhorses to spread the shade. Let’s unpack the main components that set them apart – gears, motors, and even their weather-smart reactions.
| Component | Manual Awning | Motorized Awning |
| Crank Handle | Required for operation | Optional |
| Gearbox | Present | Not needed, replaced by motor |
| Motor | Not included | Built-in tubular motor |
| Wiring & Connectors | Not needed | Required for the motor and sensors |
| Sensors (Wind/Sun) | Not available | Available |
| Manual Override | Not applicable (always manual) | Usually included for emergencies |
| Automation | Not possible | Remote, app, or scheduled operation |
Manual Crank Handle
Manual models unfold their fabric by turning a physical crank. The handle locks into a sturdy gear set, and each turn rolls the fabric over a steel tube. Because everything runs on muscle, you’ll never need an outlet.
The crank is usually foldable and built from steel or lightweight aluminum. No batteries, wires, or circuit boards means parts stay simple and repairs are cheap.
Motors and Wiring
A motorized awning hides its small electric motor inside the roll bar. When you press a button, that motor spins the tube and moves the fabric out or back.. Wires inside the frame connect the motor to a switch, remote, or smartphone app.
The wires are tough but can get pinched if the arms swing too far. A broken wire stops the motor, killing the very ease the system sells.
Gearbox vs. Tubular Motor
Older manual awnings link the crank handle to the roller via a metal gearbox full of interlocking teeth. Turn the crank, the cog grip, and the fabric rolls out without a single wire or circuit.
Motorized models ditch the gearbox. Instead, a tubular motor sits inside the roller tube and spins it directly, well, from the inside because it runs so quietly, you never notice it, except when the power quits.
Sensors and Automation
When you use a manual awning, there’s nothing fancy about the frame. It sits there waiting for you to roll it in if wind or rain shows up. In contrast, many motorized awnings come equipped with smart sensors.
A small wind sensor monitors the breeze and reels in the fabric before any damage occurs. A sun sensor can spread the awning back out as soon as the bright heat hits the patio.
Manual Override Feature
The most reassuring gadget shows up only on electric awnings. If the power dips or the motor suddenly quits, a hidden crank lets you open or close the fabric by hand.
Ordinary manual models don’t need one because turning the crank is how they roll. For electric versions, though, this small, crafty feature keeps you covered when the unexpected knocks.
Bottom Line
Knowing how your awning mechanism works helps you improve its functionality and longevity by maintaining the moving parts. But if you don’t want to go through the extra hassle of finding the errors and doing it all by yourself, contact professionals like Awningsandiego for expert help in the maintenance or repair of your awnings.
